Product Description

Zhengzhou Yueda Technology Equipment Co., Ltd

Product description of CNC plasma&flame cutting machine:

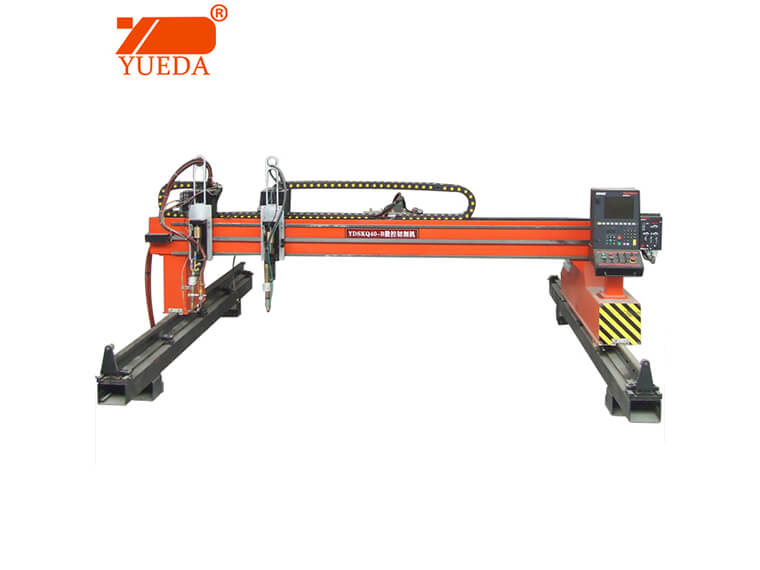

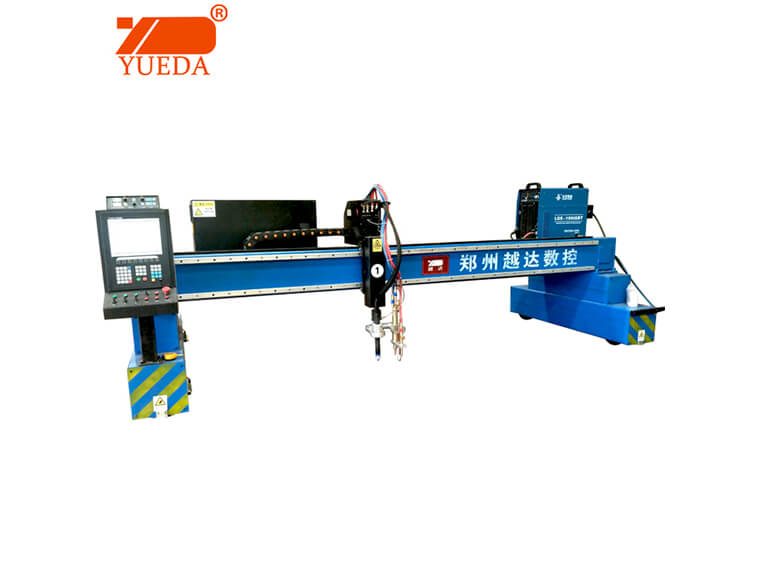

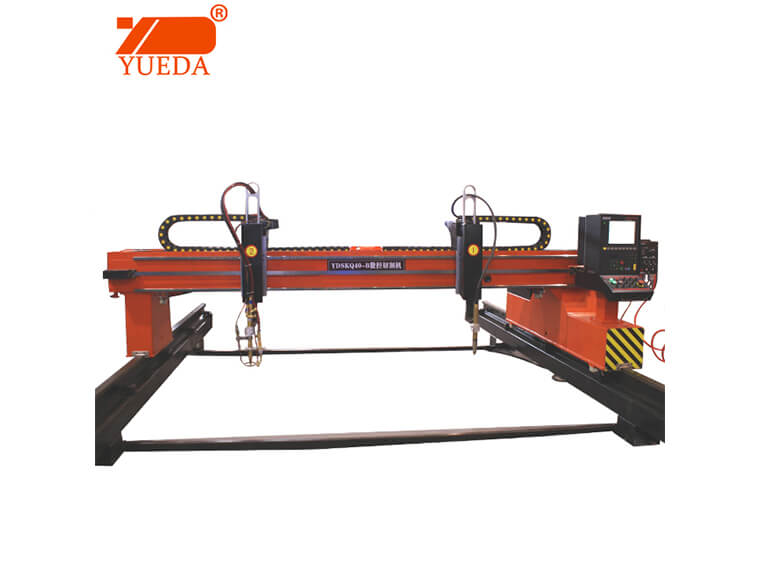

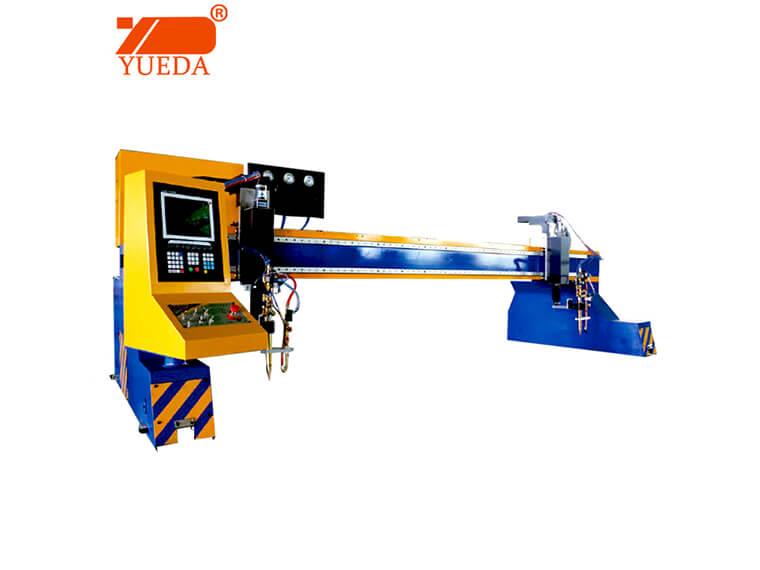

Gantry CNC plasma&flame cutting machine is not only with beautiful shape and also with advantages such as more stable operation, higher work efficiency and longer lifespan. It’s beam can be put small pickaback plasma power, and it’s suitable for different kinds of carbon steel, manganese steel, stainless steel ‘s big, medium and small steel plate cutting. The cutting machine with different transverse span such as 3m, 4m,6m,8m,etc, all equipped with bilateral drive. And the cutting machine can be equipped with more cutting torches or 2 kinds of cutting mode-abnormal cutting and straight line cutting. It’s also can equipped with optional capacitance, plasma automatic highness adjust system and plasma power.

Main features of Product description of CNC plasma&flame cutting machine:

Cross beam: The square tube butt welding structure is adopted, featuring good rigidity, high precision, light weight and small inertia. All weldments are subjected to vibration aging stress-relief treatment, effectively preventing structural deformation.
Vertical and cross drives: The precision gear and rack (7-level precision) transmission mode is adopted for them. The cross slide way is the linear slideway from Taiwan, and the longitudinal slide way is made of precisely-processed special steel rails, ensuring the smooth operation, high precision, durability, cleanness and beauty of the cutting machine; the planetary reducer is used, to effectively guarantee the accuracy and balance of movement.
Longitudinal drive frame (end frame): The horizontal guide pulleys are installed at both ends, to adjust the compression degree of eccentric wheels at the bottom of the drive frame to the slideway, to keep the stable guidance of the whole machine during movement. Besides, the frame is equipped with a dust remover, to scrape and sweep the sundries accumulating on the surface of the slide way at any time.
The drive system is the Panasonic AC servo system, making the whole machine run smoothly, with rather wide slewing range and short acceleration time.
The lifting body is an aluminum alloy structure. Its guiding are achieved with a linear slide way, and its rising with a ball screw.
Parameter
Gantry CNC cutting machine main technical parameters
Model Gantry type CNC plasma&flame cutting machine
Cutting width 3m,4m,5m,6m,etc
Rail length 6m(standard), can add length 2m per section according to client’s requirement.
Driving mode Bilateral driving (optional stepping motor or servo motor available).
Cutting torch specification 1 unit(standard), can equipped with flame or plasma cutting torch, or customized according to client’s requirements.
Cutting thickness 8-150mm(flame), plasma cutting thickness is determined by power supply size.
Cutting speed 20-700mm/min(flame);500-3500mm/min(plasma)
Ignition height-regulating automatic ignition, electric height-regulating, optional capacitive or arc pressure type height-regulating.
CNC system Beijing Stuart system, easy operation and stable performance.
CNC  programming based on CAD graphic programming software (STARCAM)
Cutting gas oxygen + acetylene or propane.
Plasma power customized according to client’s requirement
