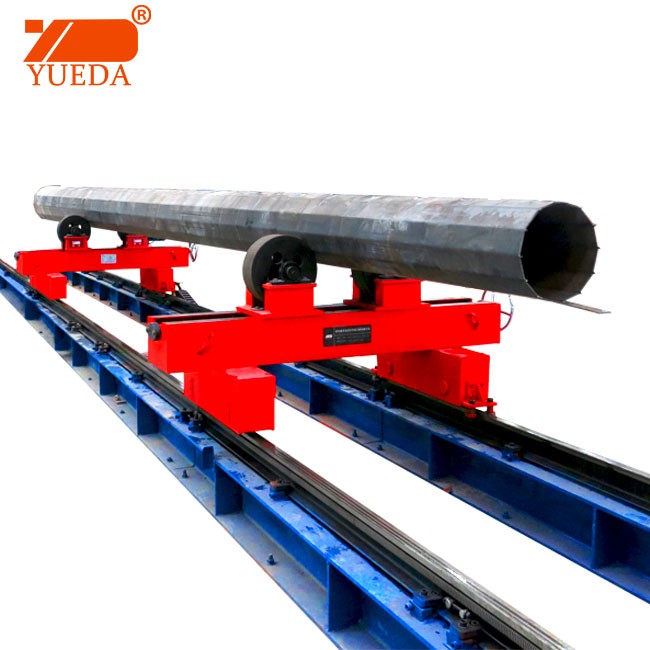

KT Series Adjustable Welding Turning Rolls
Product description of KT series adjustable welding turning rolls:
Welding rotator also called as welding turning rolls and welding turning roller is mainly used for cylindrical tank’s welding, polishing, rubber lining, assembling ,etc, and it’s also can match up with other tools for welding or assembling for cone and section equality solid of revolution. KT series welding turning rolls adjusted by lead screw or bolts, which is widely used for many industries such as wind powder, pressure vessel, petrochemical, pipeline, steel structure, boiler, shipbuilding, surfacing welding rebuilding, etc. We also can offer customized special welding rotators according to client’s requirements.
Features and advantages of KT series adjustable welding turning rolls:
- 1. Adopt double reducers and double motor drive, strong driving force. Adopt high quality speed controller with inverter, reliable performance.
- 2. Adjustable center distance: normally lead screw adjusting for loading less than 10T; bolts step adjusting for loading than 20T.
- 3. Speed is variable frequency stepless speed regulation.
- 4. Extension design according to clients’ requirements to make different kinds of transformation type such as walking type, lead screw adjustment type, lift type and inclined type, etc.
-
Any interest? Welcome to contact us to get details and professional quotation!
| KT series adjustable welding rotator main parameters | ||||
| Model | Loading capacity(T) | Roller diameter(mm) | Roller width(mm) | Workpiece dia.(mm) |
| KT-2 | 2 | 250 | 120 | 200-2000 |
| KT-5 | 5 | 300 | 120 | 200-2500 |
| KT-10 | 10 | 300 | 170 | 300-3000 |
| KT-20 | 20 | 300 | 200 | 300-3500 |
| KT-30 | 30 | 300 | 200 | 300-4000 |
| KT-40 | 40 | 425 | 220 | 300-4500 |
| KT-60 | 60 | 425 | 240 | 600-5000 |
| KT-80 | 80 | 425 | 260 | 800-5500 |
| KT-100 | 100 | 500 | 280 | 1000-6000 |
Notice: KT series welding rotator max load can be 3000Ton; OEM&ODM service are available.
